H Beam Production Line 3 In 1 H Beam Welding Machine Line

$25,000.00

H Beam Production Line is a special equipment for assembling, welding, and straightening H beam, I beam and conical I Beam.It integrates the processes completed by the three machines of assembly machine, gantry welding and straightening machine into one machine, which significantly improves production efficiency,reduces, equipment costs, saves equipment installation space, and it is the most efficient production equipment for H-beam and T-beam.

Send Enquiry
SKU 2022060303-1-1 Category

H Beam Production Line 3 In 1 H Beam Welding Machine Line

H Beam Production Line is a special equipment for assembling, welding, and straightening H beam, I beam and conical I Beam.It integrates the processes completed by the three machines of assembly machine, gantry welding and straightening machine into one machine, which significantly improves production efficiency,reduces, equipment costs, saves equipment installation space, and it is the most efficient production equipment for H-beam and T-beam.
Model
H Beam Assembly Welding Straightening Machine 3 functions in 1
Web height
200~2000mm
Web thickness
6~16mm
Flange width
200~800mm
Flange thickness
6~20mm
Work-piece length
12m or as user’s request
Assembly and welding speed
0.2~3m/min
Main machine power
5kW
Roller conveyor motor power
1.1kW*4=4.4kW
Flux recycling machine motor power
3*2=6kW
Pump station power
5.5kW
Welding source
Huayuan1250*2
Above are our standard model, it can be designed and manufactured according to customer’s request.
The Details Show

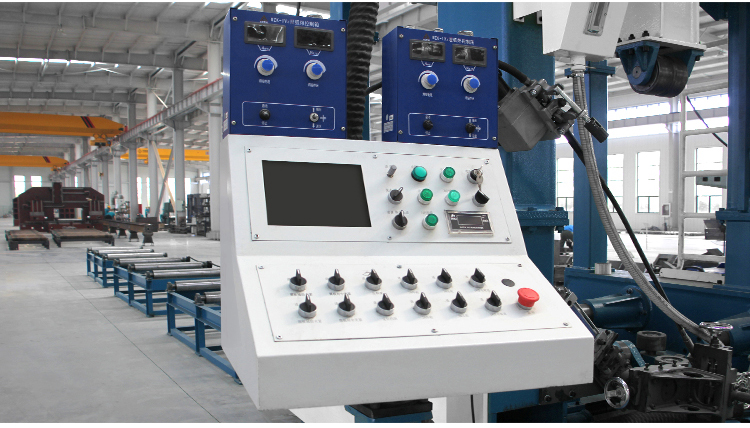

1.Various kinds of welding type, it can use single arc single wire welding or single arc double wire welding according to users’ requirement; it uses submerged arc welding.
H Beam Production Line

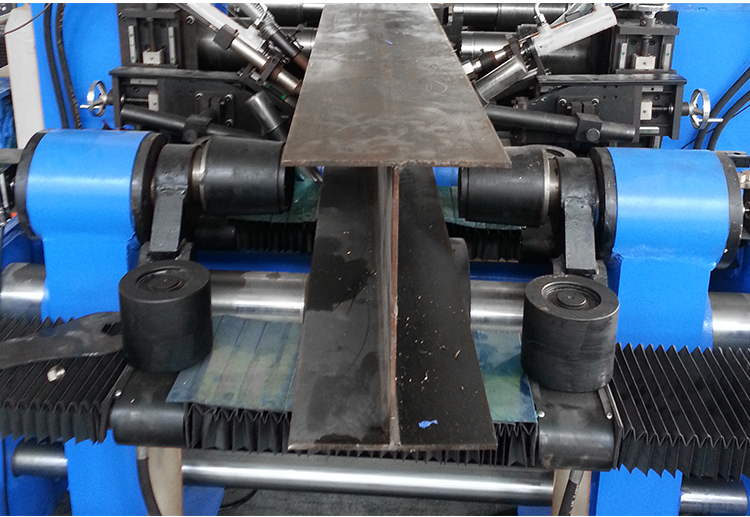

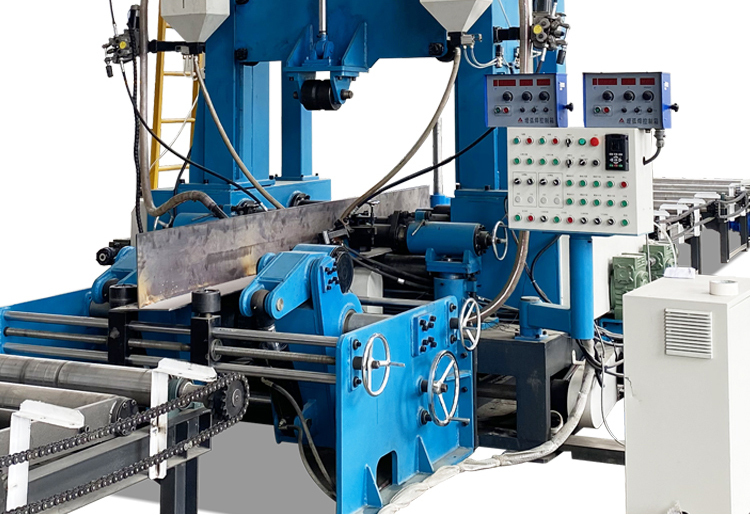

2.Double-wire flat fillet welding is used to weld on both sides at the same time, with small deformation and improved efficiency.
H Beam Production Line

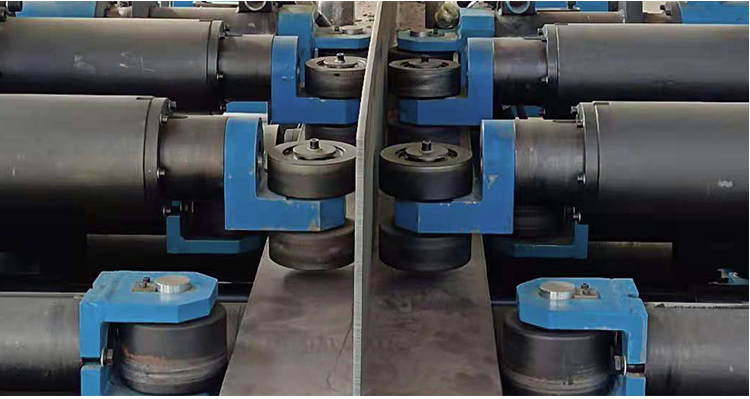

3.Flange Straightening Part,Correction of the auxiliary transmission idler mechanism, the left and right clamping mechanism of flange

4.PARAMETRIC INTERFACE

Using parameterized interface, it is convenient to adjust processing specifications and various public parameters

Beam welding line machine is an automated H beam welding system with high productivity and minimal deformation. It consists of an assembling machine, front welding machine, overturning machine, back welding machine and their conveying rollers.

Laser welding is a type of welding that utilizes lasers to focus light beams on the area being worked on. The energy from this light beam is absorbed by ruby crystal atoms, creating an intense heat source.

Welding process

Welding is a process that joins two metal parts together by melting them, either with or without filler metal. There are various ways to accomplish this, such as flame, arc, laser, explosion friction and brazing.

When welding, the base metal of the joint is heated to an extremely high temperature (over 1000*C) in order to melt it. A filler material then goes into this hot pool of melted metal and cools to form a strong and secure joint.

This step in welding is essential, as it creates a joint that is stronger than its base material. There are various weld configurations such as butt, full penetration, fillet and lap joints.

Welding is an integral part of the production process for many products we use daily, such as kitchen utensils, cars, buildings and bridges.

Welding parameters

When welding metal with a beam welding line machine, the welding parameters vary based on the metal being welded. To guarantee quality welds that are both safe and efficient, it’s essential to select the appropriate welding wire and flux.

Arc welding is a complex process involving arc physics, heat transfer, metallurgy and mechanics. Computer simulation technology can be employed to determine the most appropriate welding procedure and parameters for any given structure.

Parameters such as wire diameter, material thickness and power supply voltage can be set manually or automatically with an Auto-Set control.

Laser beam welding is a technique that utilizes an intense laser beam directed onto the work piece being joined. This produces concentrated heat that allows for deep weld penetration and reduces the size of the weld joint.

Conveyors

Beam welding line machines employ conveyors to ensure smooth operation and provide the operator with a visual indication of how quickly the beams are moving.

Horizontal welding lines utilize a conveyor that is fifty percent longer than the length of a beam, enabling it to load and assemble one piece while loading another.

These conveyors can also be designed to tack weld the two pieces together before sending them into an arc welding machine. This step is vital and can significantly speed up production.

Conveyors can also be designed to allow different thicknesses of beam to be welded simultaneously, increasing production by two and increasing overall output.

Turning over device

At JGM, welding is an integral part of our production for the power generation industry. We offer a wide range of machines in various sizes and configurations that can be used for projects ranging from small to large; single cylinder gas turbines up to multi-megawatt generators. We offer a selection of hand held gas welding machines for one off welding jobs. Of the many types of equipment we have available, one that stands out as especially helpful is the beam welding line. It consists of a series of hydraulic hoses which can be connected to various parts of the machine, such as the gun assembly or gas inlet. In addition to pipe and seam rollers, there are other mechanical elements required for this machine to work its magic.

The beauty of the beam welding line is that there’s no manual labor involved. Each machine features an intuitive control system that can be tailored for specific jobs, saving money on labor and the environment while still producing top-notch results. It’s an ideal way to save money on materials while still producing top quality output.
